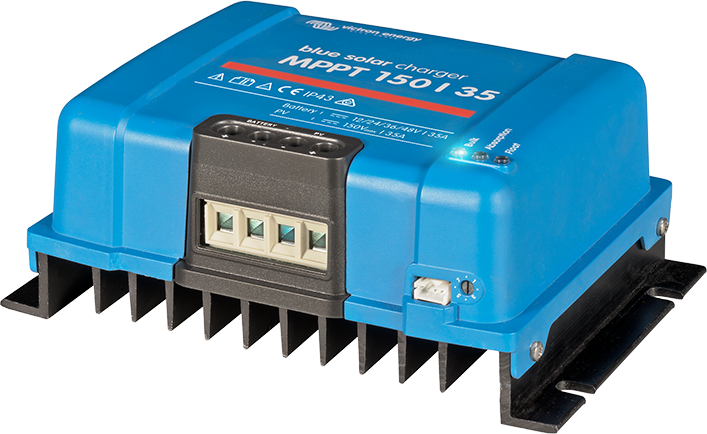

Victron Energy MPPT 150/35 BlueSolar Solar Charge Controller
- Charge current up to 35A, and PV voltage up to 150V
- Automatically adjust to a 12, 24 or 48V nominal battery voltage
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading conditions
Model: BlueSolar MPPT 150/35
Charge current: 35 A
Maximum PV Open Circuit Voltage: 150V
Maximum PV Power: 500W (12V), 1000W (24V), 2000W (48V)
Battery voltage (nominal): 12 / 24 / 48V auto select
PV Maximum Voltage: 150V
Rated charge current: 35A
Battery Voltage: 12/24/48V (auto select)
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Several preconfigured algorithms.
One user programmable algorithm. Manual or automatic equalisation.
Battery temperature sensor. Battery voltage sense option.
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
| Part Number |
SCC020035000 |
|---|---|
| Manufacturer |
Victron Energy |
